Fiat Commercial Qubo, Dobl� - Fiorino with SJTD Engine
Fiat Punto, Idea JTD, Panda with SJTD Engine
Lancia Musa, Ypsilon with SJTD Engine
Opel with SJTD Engine
2003- Fiat Doblo 1.3 JTD Engine 16V Multijet
2003- Fiat Idea 1.3 JTD Engine 16V Multijet
2003- Fiat Punto II 1.3 JTD Engine 16V Multijet
2003- Fiat Qubo 1.3 JTD Engine 16V Multijet
2003- Lancia Musa 1.3 16V Multijet Engine 16V Multijet
2003- Lancia Ypsilon 1.3 Multijet 16V Engine 16V Multijet
2005- Opel Corsa D 1.3 CDTI Engine Z13DTJ

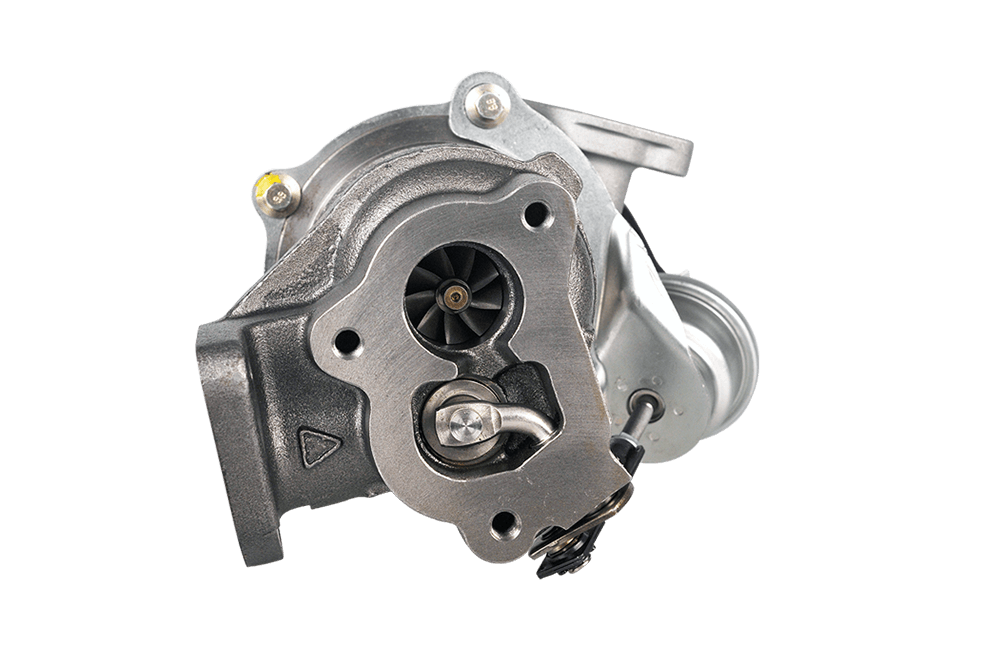

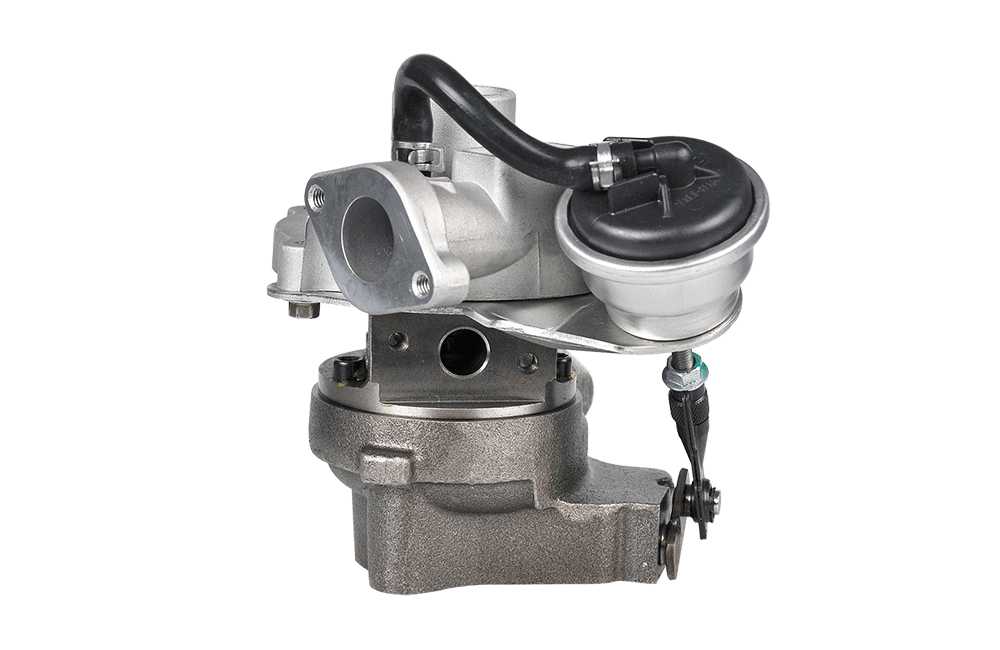

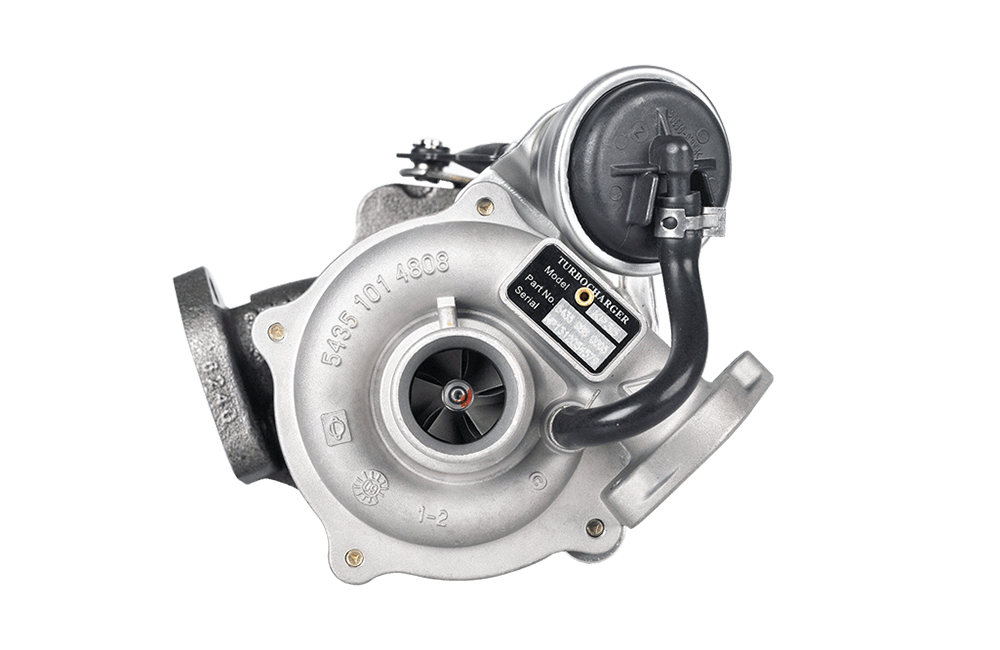

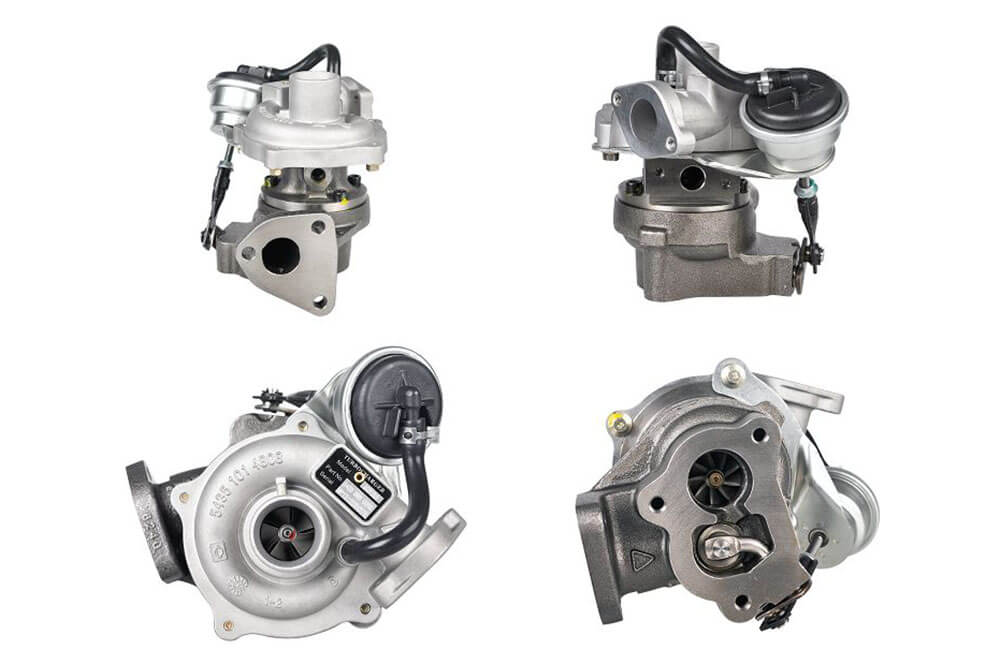

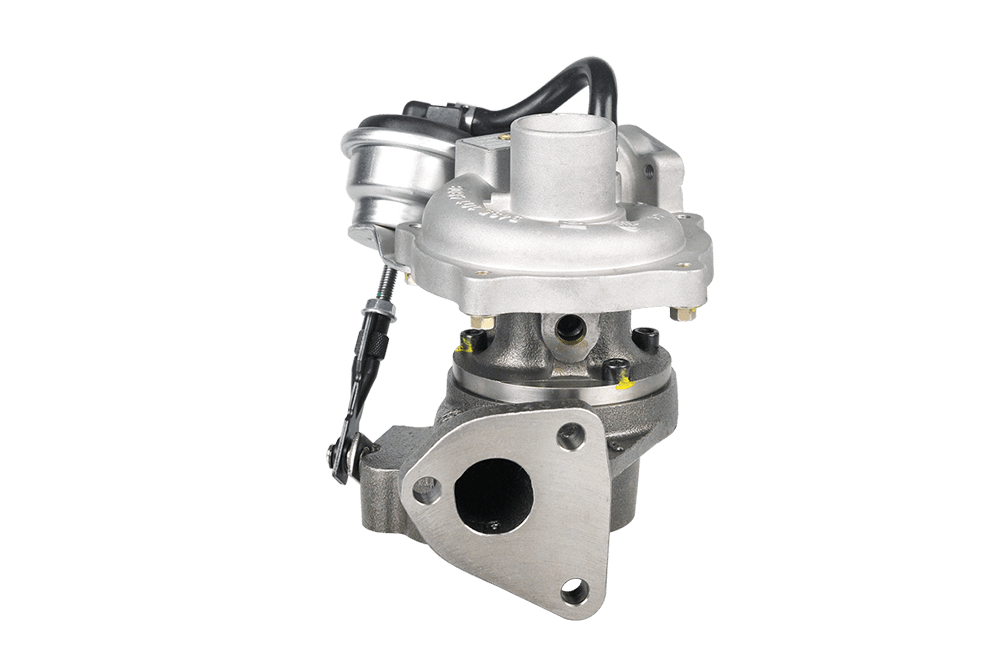

2003- Fiat Commercial Vehicle KP35 Turbo 54359880005
|
Part Number |
54359880005 |
|
Previous Part Number |
5435-988-0005, 5435 988 0005 |
|
OE number |
73501343, 71784113, 5860030, 93191993 |
|
Description |
Commercial |
|
Manufacturer Part Number |
54359700005, 5435-971-0005 5435-970-0005, 5435 971 0005 5435 970 0005 |
|
CHRA |
54357100503 (54357100505, 5435-710-0505) |
|
|
|
|
Turbo Model |
KP35-005, KP35-1570CBC180.85ACAXD |
|
Engine |
SJTD, 16V Multijet, Z13DTJ |
|
Application |
POINT-Panda-MUSA-FIORINO, Opel Corsa, Lancia |
|
Displacement |
1.25L, 1248 ccm |
|
KW |
51/55 |
|
RPM Max |
4500 |
|
Fuel |
Diesel |
|
Angle α (compressor housing) |
143 dge |
|
Angle β (turbine housing) |
189 dge |
|
Bearing Housing |
54351523003 |
|
Turbine Wheel |
54351523001 |
|
Comp. Wheel |
54351232005 |
|
Back plate |
54351523001 (S/Back 38 mm 54351523000/0001) |
|
Heat Shield |
54351652000 |
|
Repair Kit |
Available |
|
Turbine Housing |
54351009017 |
|
Compressor Cover |
54351014808 |
|
Turbine Housing AR |
180 |
|
Actuator |
58201104311/58201104216 |
|
Settings Waste gate (pressure) |
1.38 bar |
|
Settings Waste gate (lift shaft) |
2.00 mm |
|
Gasket (turbine inlet) |
210673 |
|
Gasket (turbine outlet) |
210674 |
|
Gasket (oil outlet) |
210553 |
|
Gasket (air outlet compressor housing) |
210806 |
|
Manufacturer |
WUXI EbayTurbo of China |
