1995-09 Ford Galaxy TDI with 1Z, AHU Engine
1995-09 Seat Alhambra TDI- Ibiza/Cordoba with 1Z, AHU Engine
1995-10 Seat Toledo with 1Z, AHU Engine
1993-10 Volkswagen Passat III TD Car with 1Z, AHU Engine
1995-09 Volkswagen Sharan TDI with 1Z, AHU Engine
1993-09 Volkswagen Golf III/Vento TD with 1Z, AHU Engine
1993-09 Audi A4-80 TD 1.9L 'Umwelt' with 1Z, AHU Engine

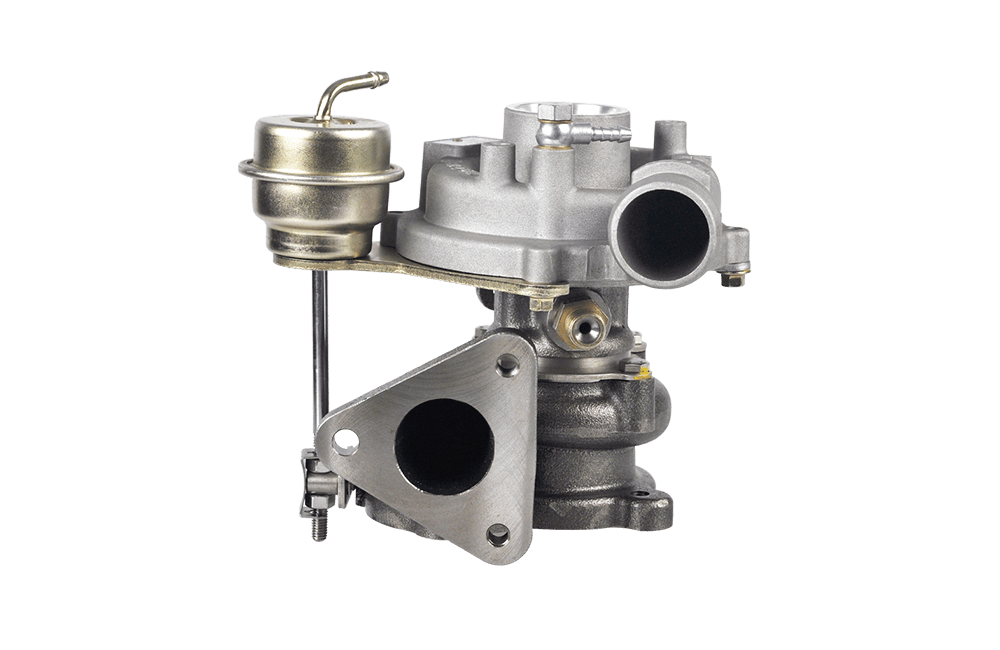

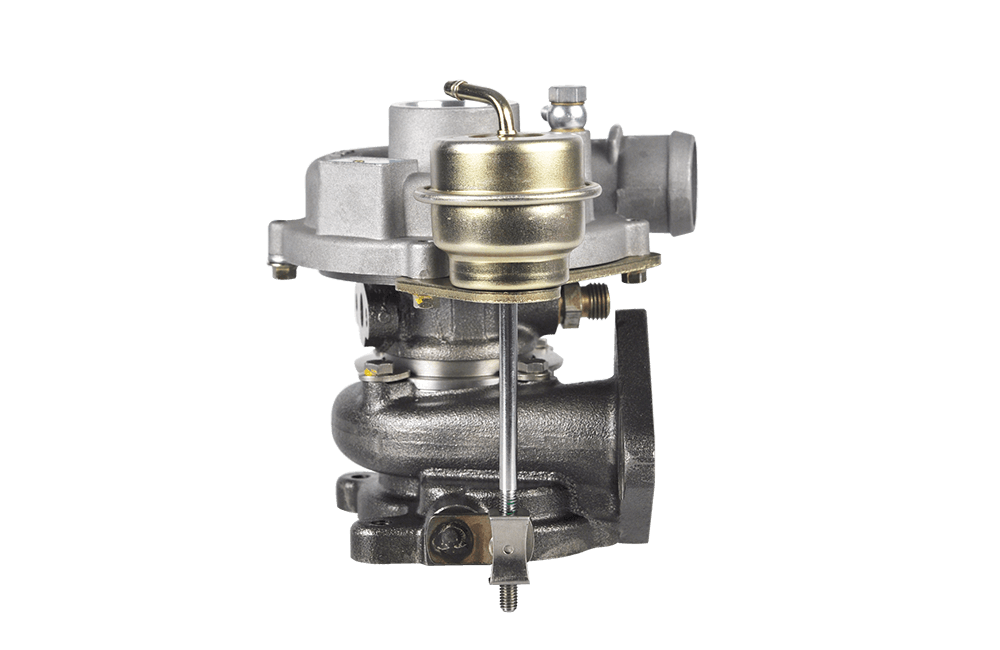

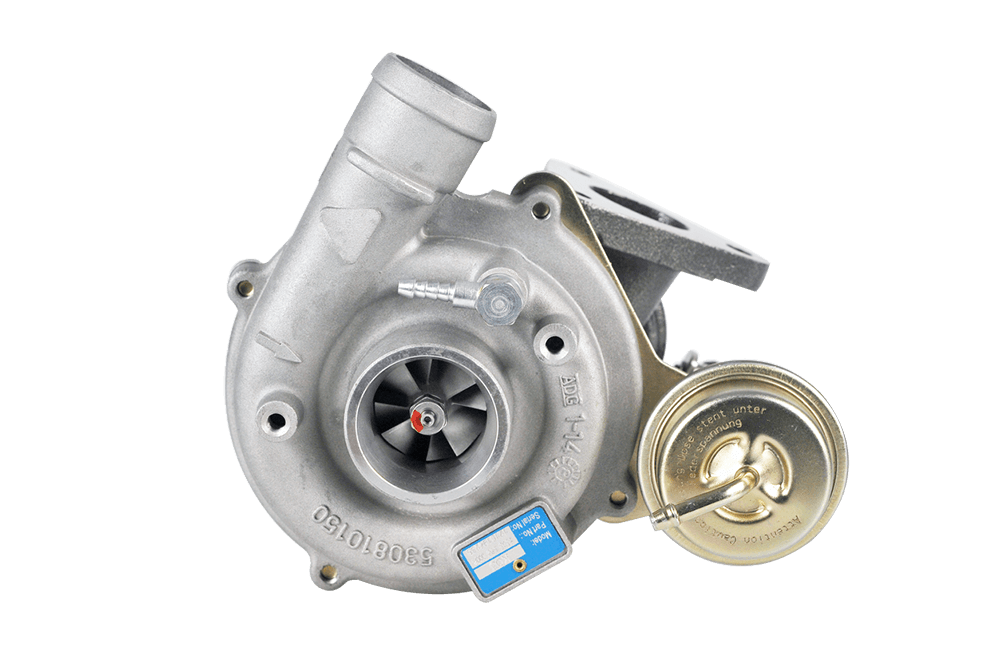

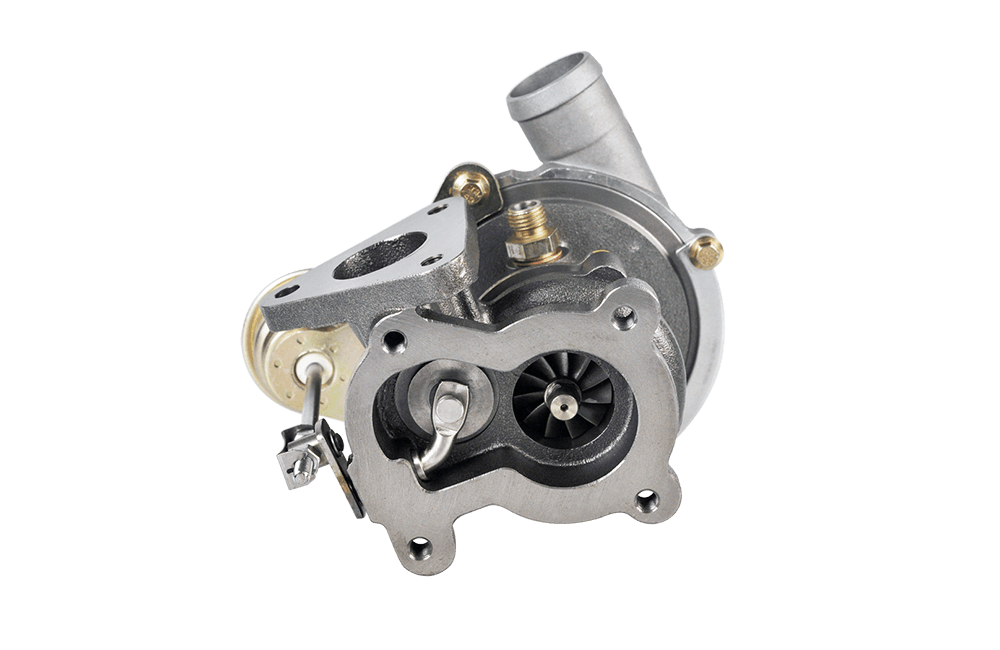

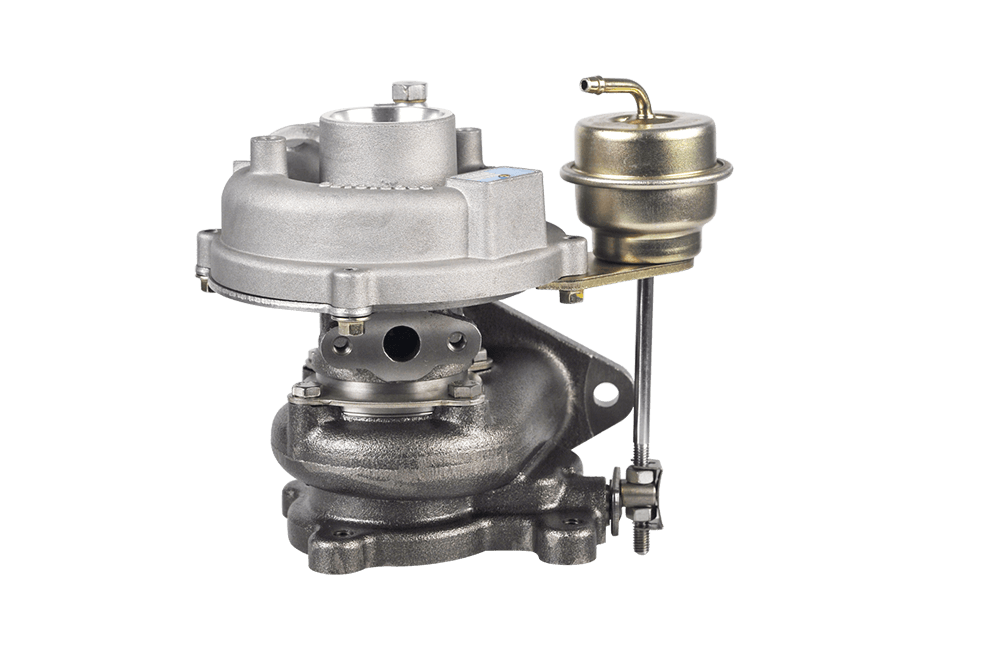

1993-10 Ford Seat Audi VW K03 Turbo 53039880006
|
Part Number |
53039880006 |
|
Previous Version |
5303-988-0006, 5303 988 0006 |
|
OE number |
95VW6K682AB, 1121159, 1002829, 028145701J, 028145701JX, 028145701JV, 028145701Q, 028145701QX, 028145701QV, 028145701R |
|
Year |
1993-2010 |
|
Description |
Seat, Audi, Ford, Volksvagen |
|
Manufacturer Part Number |
53039700006, 5303-970-0006 |
|
CHRA |
53037100501 (5303-710-0501) |
|
Turbo Model |
K03-006, K03-1870EAA3.81KCAAD |
|
Engine |
1Z / AHU |
|
Engine Manufacturer |
Ford |
|
Displacement |
1.9L, 1896 ccm |
|
KW |
66/90 HP |
|
RPM Max |
4000 |
|
Fuel |
Diesel |
|
Angle α (compressor housing) |
280 dge |
|
Angle β (turbine housing) |
170 dge |
|
Bearing Housing |
53041500011 |
|
Turbine Wheel |
53031205001/53031205006/53031205016 |
|
Comp. Wheel |
53031232011 |
|
Back plate |
53031515701/53031515700 |
|
Heat shield Number |
53031652000 |
|
Repair Kit |
53037110001 $69.00 |
|
Turbine Housing |
53031008001/53031009008 |
|
Compressor Cover |
53031015009/53031015004 |
|
Turbine Housing AR |
3 |
|
Actuator |
58201104064/58201104016 |
|
Replaced by |
454083-0001, 454083-0002 |
|
Manufacturer |
WUXI EbayTurbo of China |
|
Interchangeable with 454083-5002S |
|
