2000-09 Audi A3 with AUQ, ARZ Engine
2000-09 Audi TT with AUQ, ARZ Engine
2000-09 Seat Leon with AUQ, ARZ Engine
2000-05 Seat Leon Cupra with AUQ, ARZ Engine
2000-09 Skoda Octavia with AUQ, ARZ Engine
2000-09 Volkswagen Golf/Bora/Jetta with AUQ, ARZ Engine

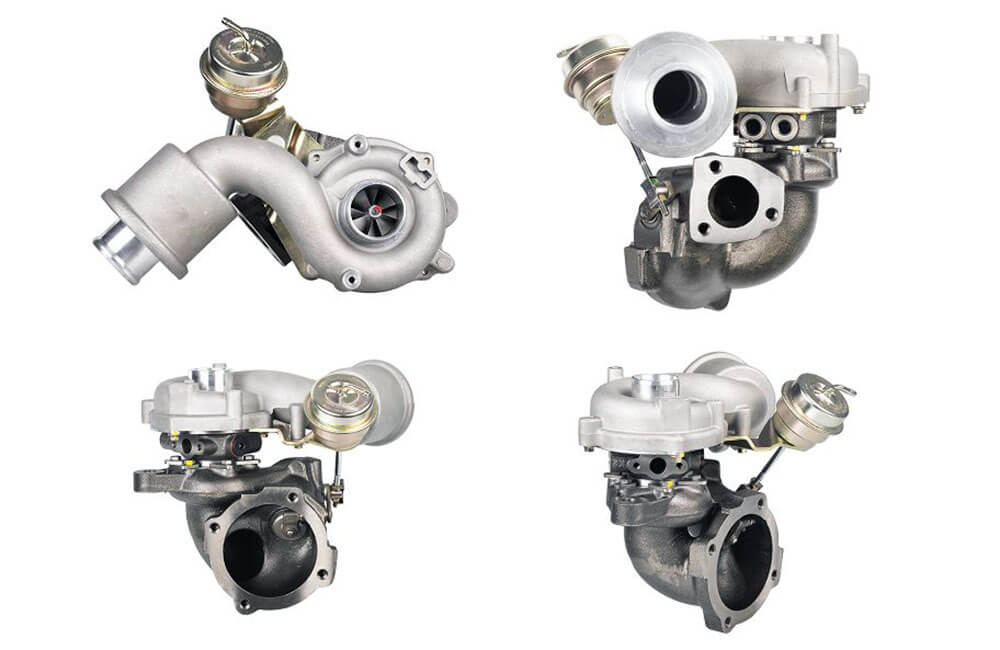

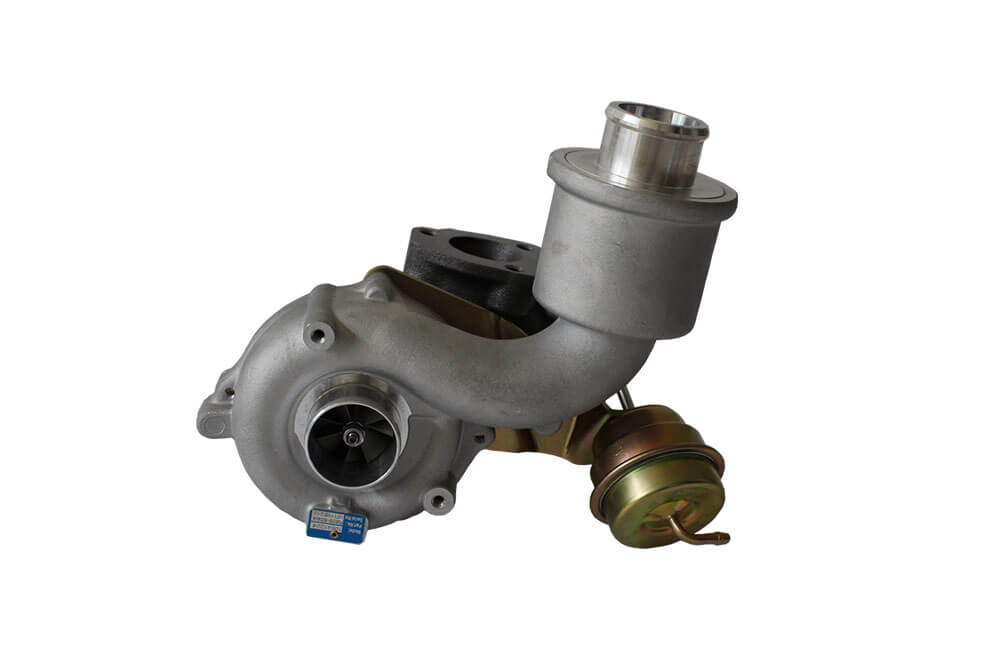

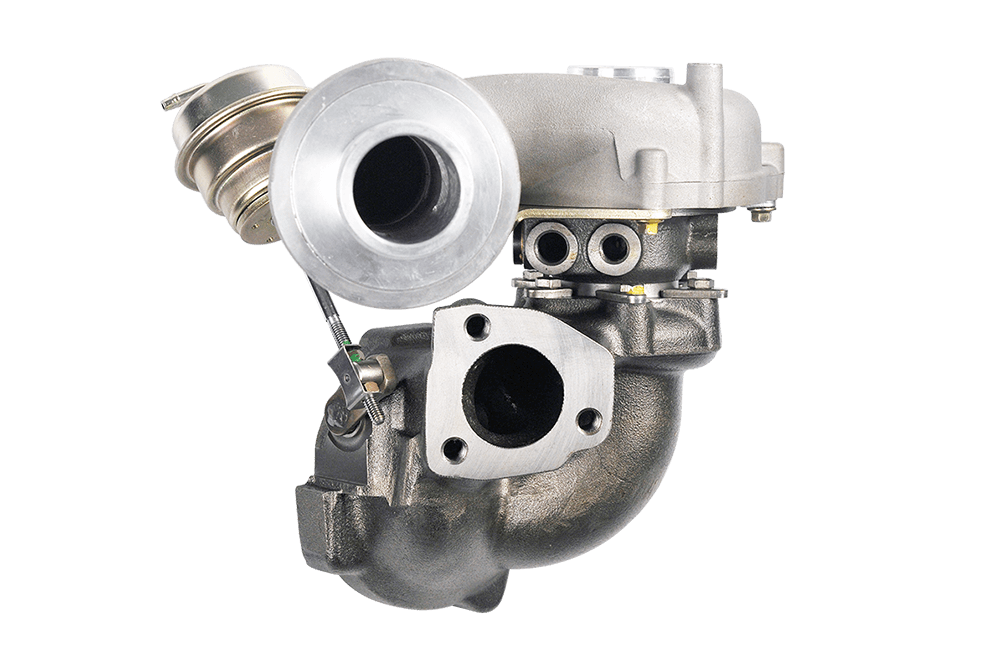

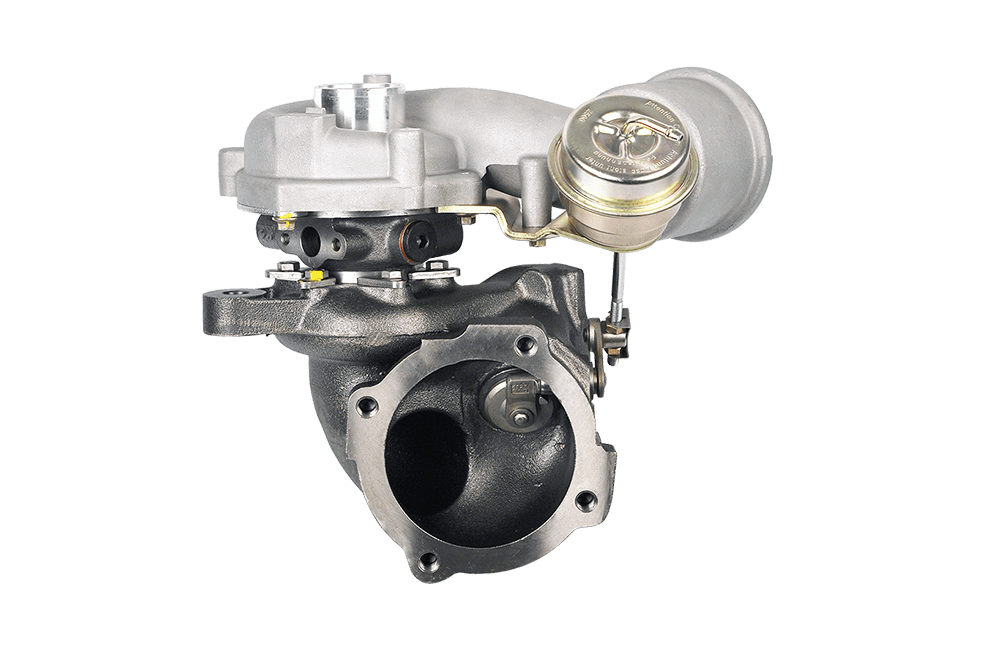

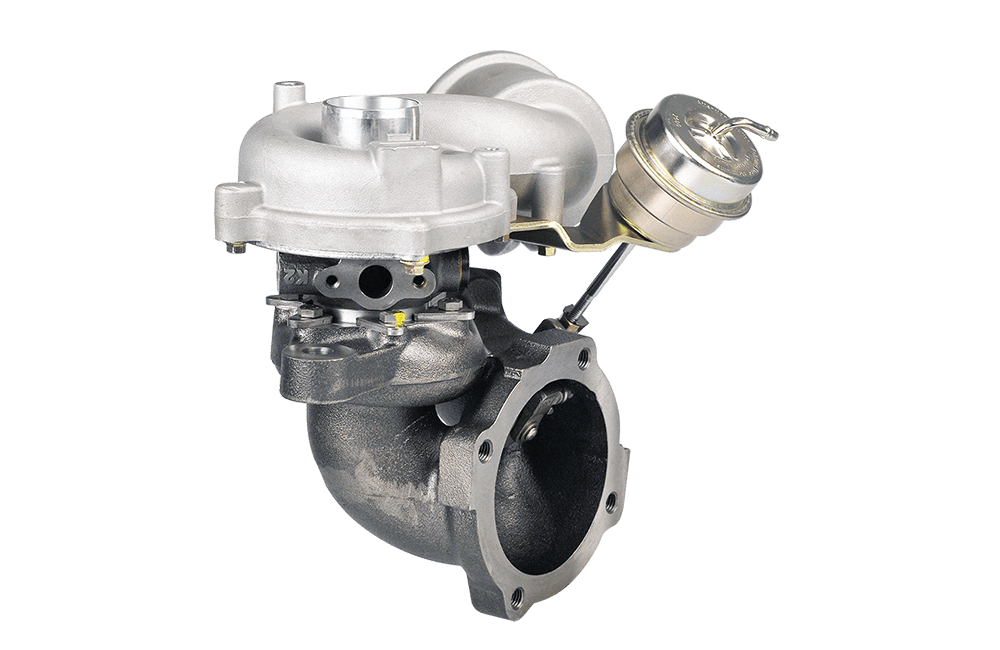

2000-09 Audi Seat Skoda Volkswagen K03 Turbo 53039880052
|
Part Number |
53039880052 |
|
Previous Version |
5303-988-0052, 53039880094, 5303-988-0094 |
|
OE number |
06A145704T, 06A145713D, 06A145713DX, 06A145713DV, 06A145713F |
|
Year |
Sep-00 |
|
Description |
Audi, Seat, Skoda, Volkswagen |
|
Manufacturer Part Number |
53039700052, 53039700094, 5303-970-0052, 5303-970-0094 |
|
CHRA |
53037100516 (5303-710-0516) |
|
Turbo Model |
K03-2075EYD5.88KCAXH |
|
Engine |
AUQ, ARZ, APP |
|
Displacement |
1.8L, 1781 ccm, 4 Cylinders |
|
KW |
132/180 HP |
|
RPM Max |
5500 |
|
Fuel |
Gasoline |
|
Angle α (compressor housing) |
266.5 dge |
|
Angle β (turbine housing) |
183.5 dge |
|
Bearing Housing |
53041500017 |
|
Turbine Wheel |
53031205023 |
|
Comp. Wheel |
53041232029 |
|
Back plate |
53041515712 |
|
Heat shield Number |
5303-652000 |
|
Repair Kit |
53037110001 |
|
Turbine Housing |
53031009078 |
|
Compressor Cover |
53041015017 |
|
Turbine Housing AR |
5 |
|
Actuator |
58251104084 |
|
Settings waste gate (pressure) |
0.48 bar |
|
Settings Waste gate (lift shaft) |
4.0 mm |
|
Manufacturer |
WUXI EbayTurbo of China |
|
Condition |
Brand new |
