1998-03 Saab 9-3 I 2.0L T Engine B205E
2001-02 Saab 9-3 I 2.0L Turbo Engine B205E / B235E
1997- Saab 9-5 2.0L T Engine B205E
1997-00 Saab 9-5 2.3L T Engine B235E,R
1998-03 Saab 9-5 3.0L T V6 Engine B308E
1999-01 Saab 9-5 2.3L Turbo Engine B235E,R
2000- Saab 9-5 2.3L T Engine B235E,R

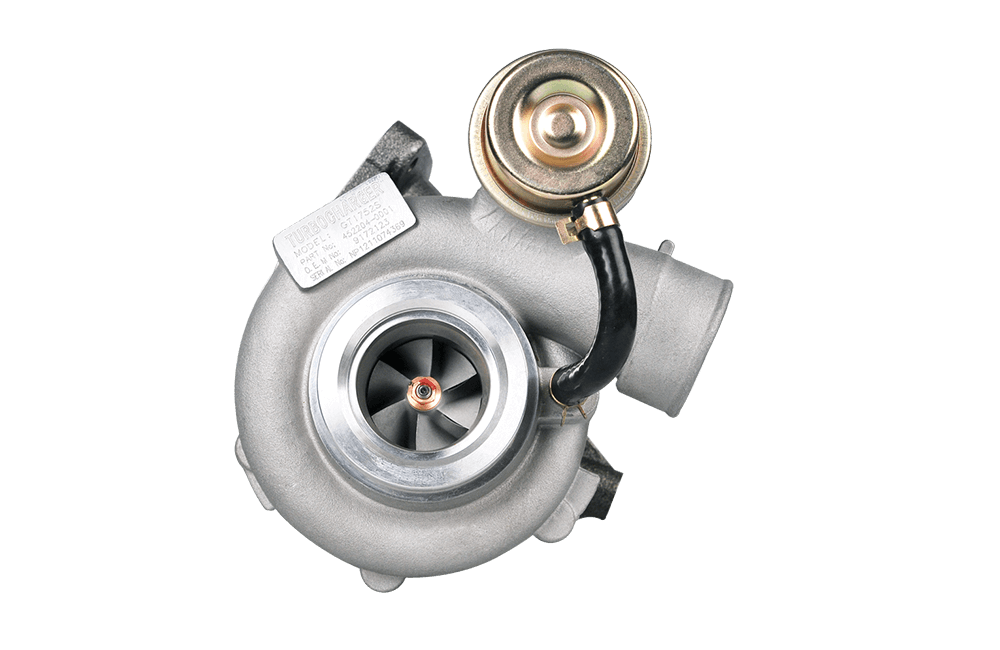

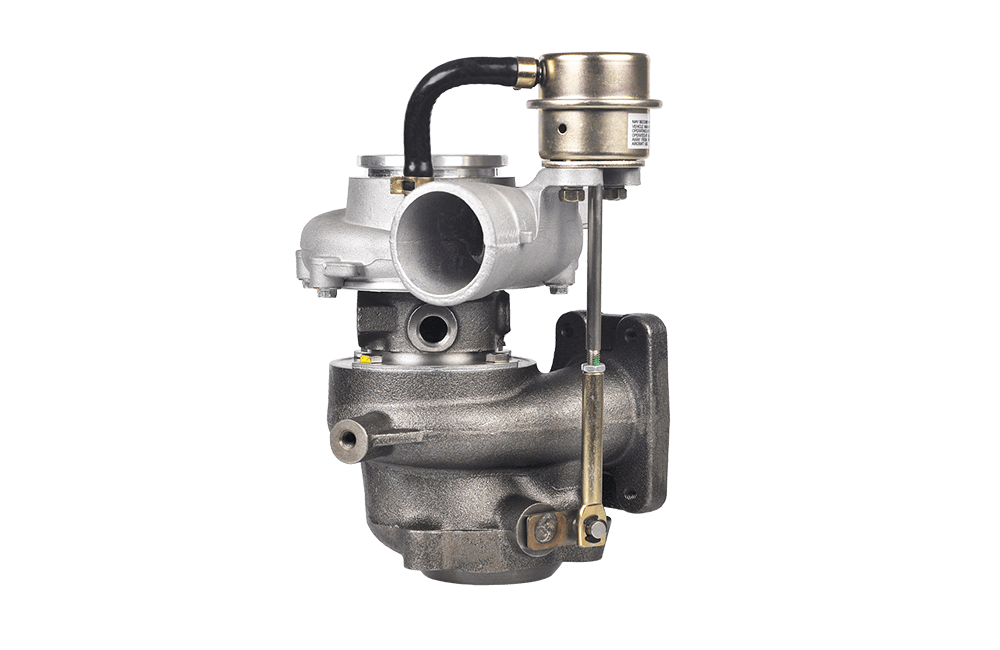

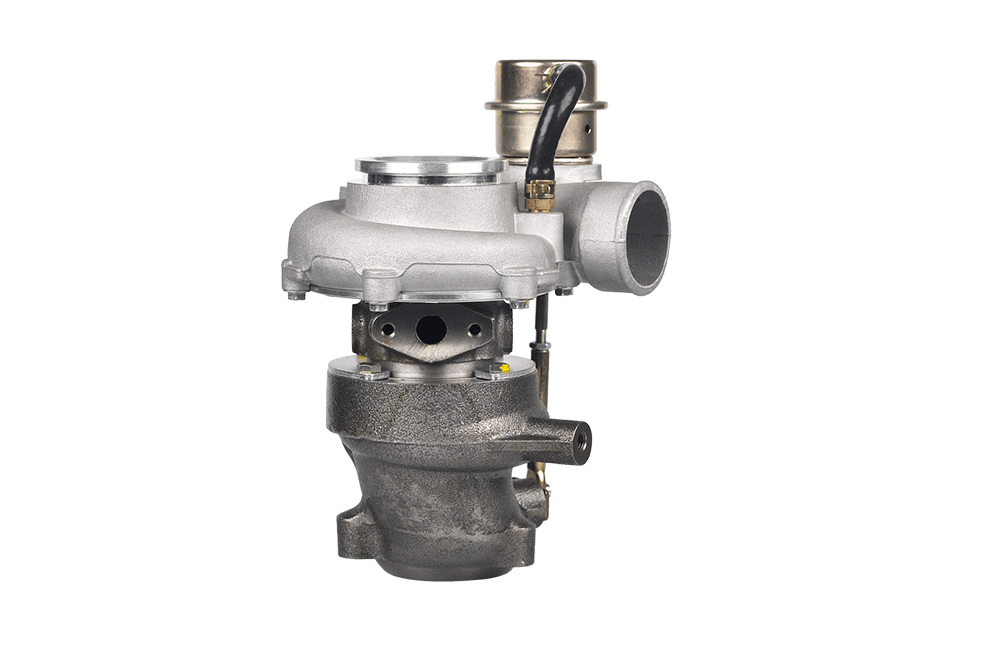

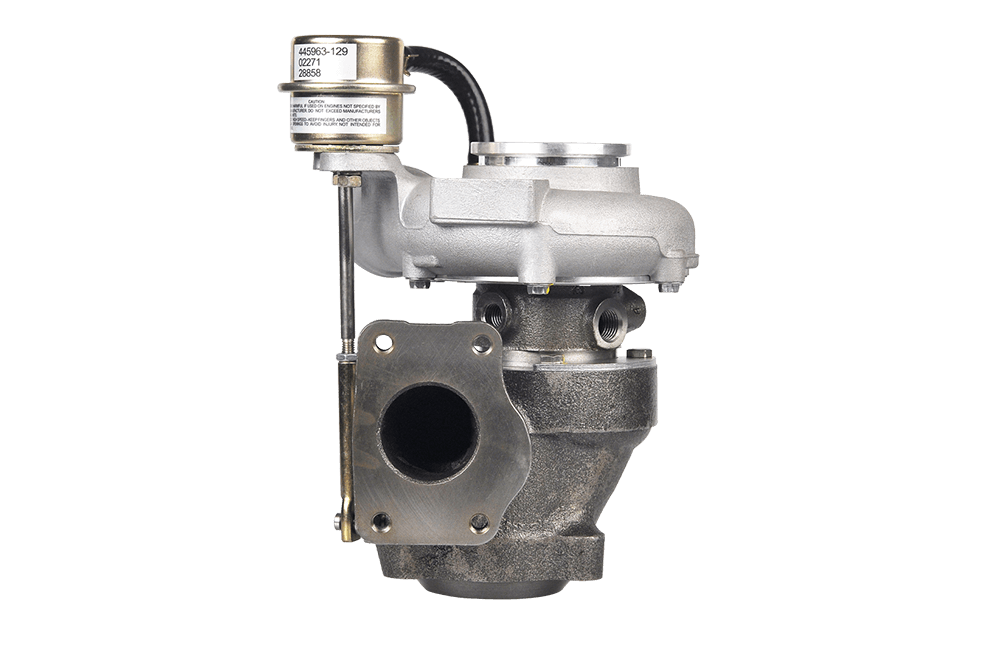

GT1752S Turbo 452204-0004 Use for Saab 9-3 9-5
|
Part Number |
452204-5005S |
|
Previous Version |
452204-0001, 452204-0003, 452204-0004, 452204-0005, 452204-0007, 452204-1, 452204-3, 452204-4, 452204-5 |
|
OE Number |
5955703, 9172123, 55560913, 9198631, 4611349, 9180290 |
|
Year |
Jan-97 |
|
Description |
93, 95, 9-3, 9-5 |
|
CHRA |
433352-0055 (433352-5055S)(1102015916, 1000010191) $295.00 NEW IN STOCK |
|
Turbo Model |
GT1752S |
|
Engine |
B235E, B205E, 2.0LPT, 2.3LPT |
|
Engine Manufacturer |
Saab |
|
Displacement |
2.0L, 3.0L, 2290/2962/1985 ccm |
|
KW |
110/136/125/147/169 |
|
RPM Max |
5500 |
|
Fuel |
Gas |
|
Angle α (compressor housing) |
110° |
|
Angle β (turbine housing) |
142° |
|
Bearing Housing |
434578-0012 (713782-0006, 434578-0014)(Water Cooled)(1900011193) |
|
Turbine Wheel |
434714-0034 (434714-0004, 434714-0009, 434714-0019, 434717-0034)(Ind. 44.19 mm, Exd. 37.49 mm, 9 Blades)(1100030114) |
|
Comp. Wheel |
436133-0002 (436131-0012, 436131-0016, 436131-0022)(Ind. 32.61 mm, Exd. 44. mm, 6+6 Blades, Superback)(1200020015) |
|
Back plate |
701335-0001 (1300011007) |
|
Heat shield Number |
723421-0001 (430871-0002, 445118-0001)(2030016026) |
|
Repair Kit |
732252-0001 (5000010067B) |
|
Turbine Housing |
413567-0061 |
|
Compressor Cover |
409589-0622 (436246-0004) |
|
Turbine Housing AR |
0.47 |
|
Actuator |
432340-0068 (2061016150) |
|
Settings Waste gate (pressure) |
0.360-0.400 bar |
|
Settings Waste gate (lift shaft) |
0.38 mm |
|
Gasket (turbine inlet) |
210224 (Stainless Steel) |
|
Gasket (oil outlet) |
210243 (Paper) |
|
Gasket Kit |
-2090505199 |
|
Manufacturer |
WUXI EbayTurbo |
|
Condition |
Brand New |
