2001-11 Citroen C3 with DV4TD Engine
-
2001-05 Ford Fiesta 1.4 TDCi with DV4TD Engine
-
2009- Mazda 2 with DV4TD Engine
-
2002-11 Peugeot 206 1.4 HDi with DV4TD Engine

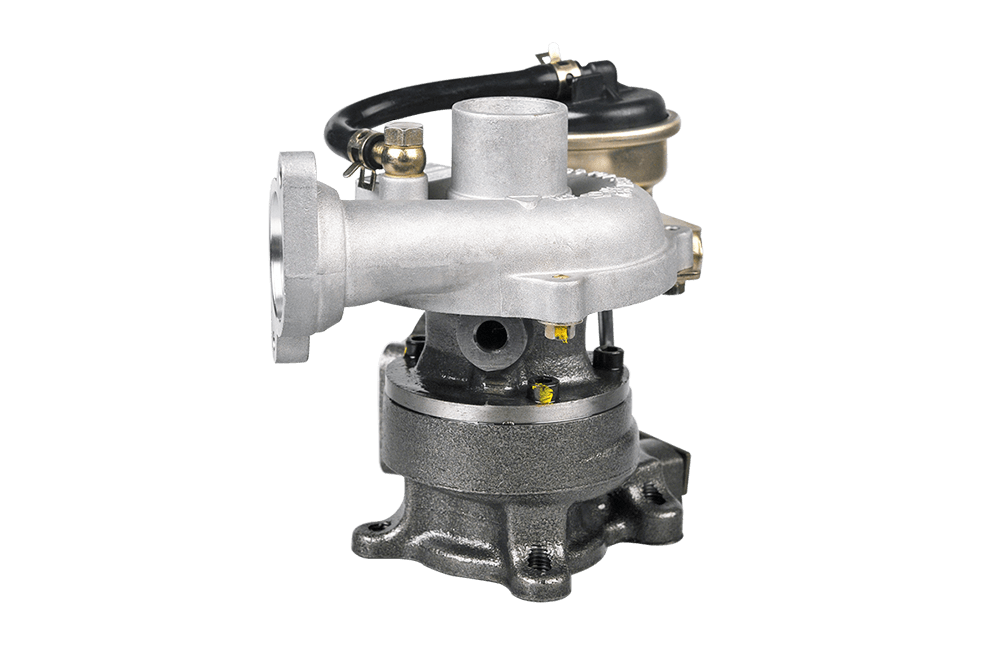

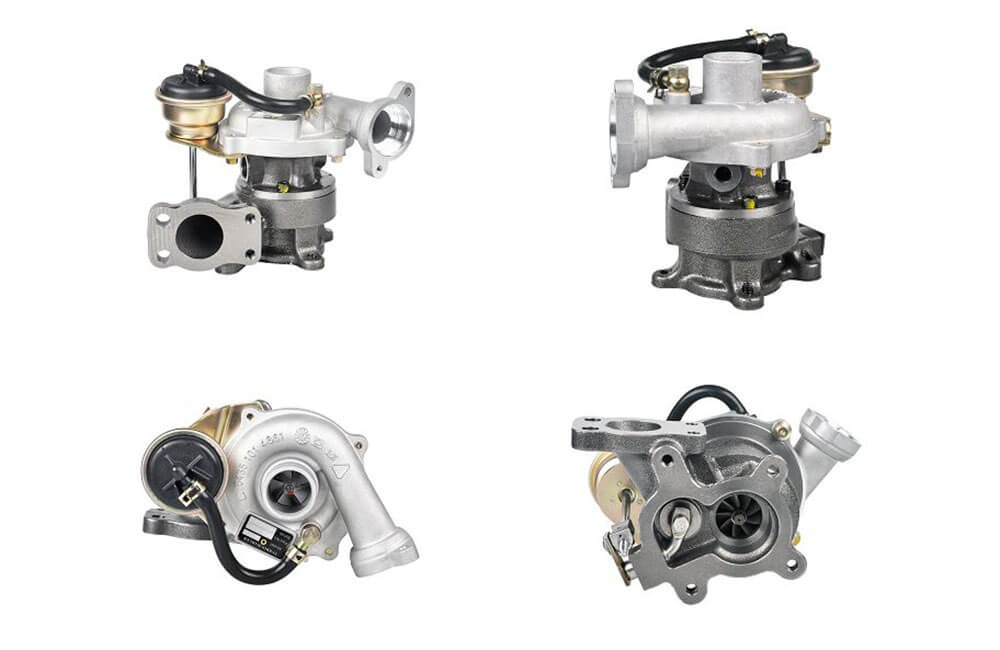

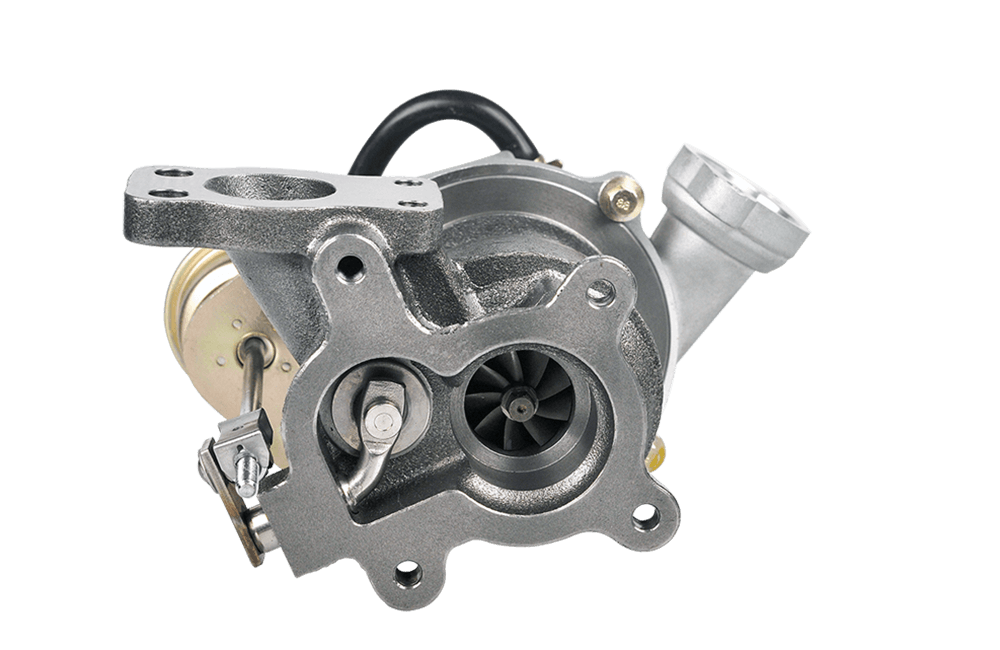

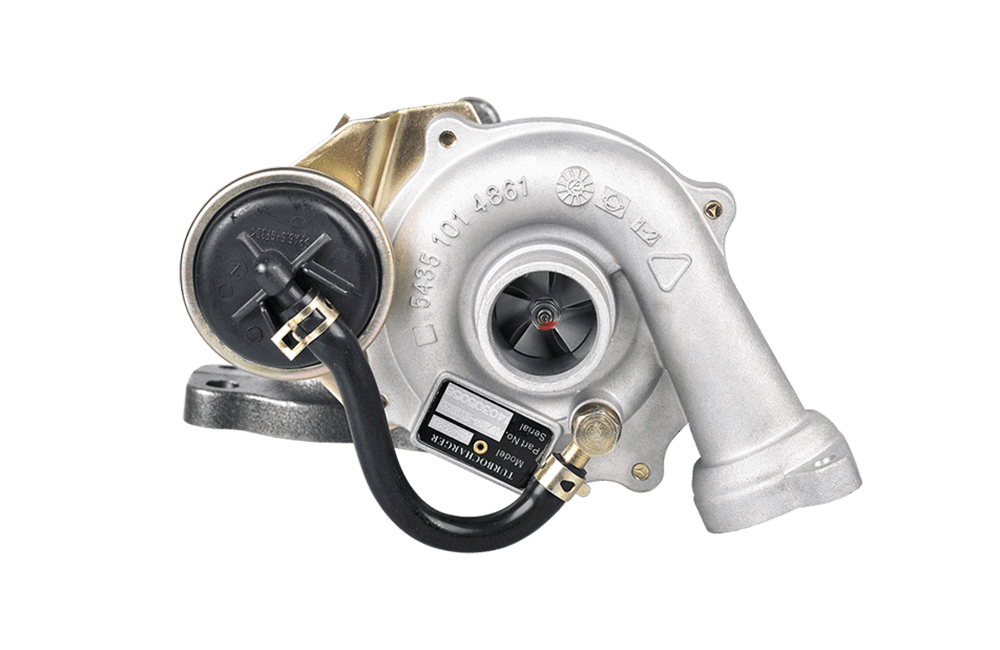

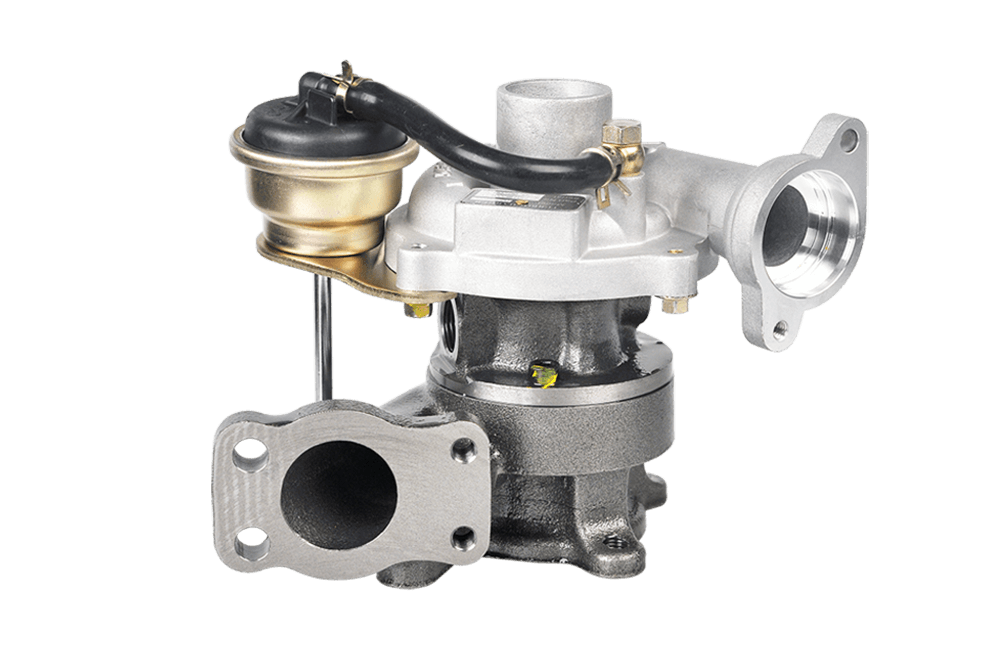

2001-11 Ford Citroen Mazda KP35 Turbo 54359880009
|
Part Number |
54359880009 |
|
Previous Version |
5435-988-0009, 5435 988 0009, 54359880001, 54359880007, 5435-988-0001, 5435-988-0007 |
|
OE number |
9648759980, 0375G9, 9643574980, 9643675880, 9643675880, 2S6Q6K682AA, 2S6Q6K682AB, 1219456, 1488986 - 2S6Q6K682AD, 1348618, 2S6Q6K682AC, 0375K0 |
|
Year |
Nov-01 |
|
Description |
Mazda, Ford, Peugeot, Citroen |
|
Manufacturer Part Number |
54359700001, 54359700007, 54359880009, 54359710009, 54359700009, 5435-970-0001, 5435-970-0007, 5435-988-0009, 5435-9710-009, 5435-970-0009 |
|
CHRA |
54357100502 (5435-710-0502) |
|
|
|
|
Turbo Model |
KP35-1574CBK240.82ACAXD |
|
Engine |
DV4TD |
|
Displacement |
1.41L, 1400 ccm |
|
KW |
50 |
|
RPM Max |
4000 |
|
Angle α (compressor housing) |
339 dge |
|
Angle β (turbine housing) |
78dge |
|
Bearing Housing |
54351510007 |
|
Turbine Wheel |
54351205006 |
|
Comp. Wheel |
54351232007 |
|
Backplate |
54351523001 |
|
Heat shield |
54351652000 |
|
Turbine Housing |
54351009015 |
|
Compressor Cover |
54351014801 |
|
Actuator |
58201104180 |
|
Manufacturer |
WUXI EbayTurbo of China |
