2000-09 Nissan Patrol, Safari, Terrano II with 123ZD30ETi, ZD30ETi Engine

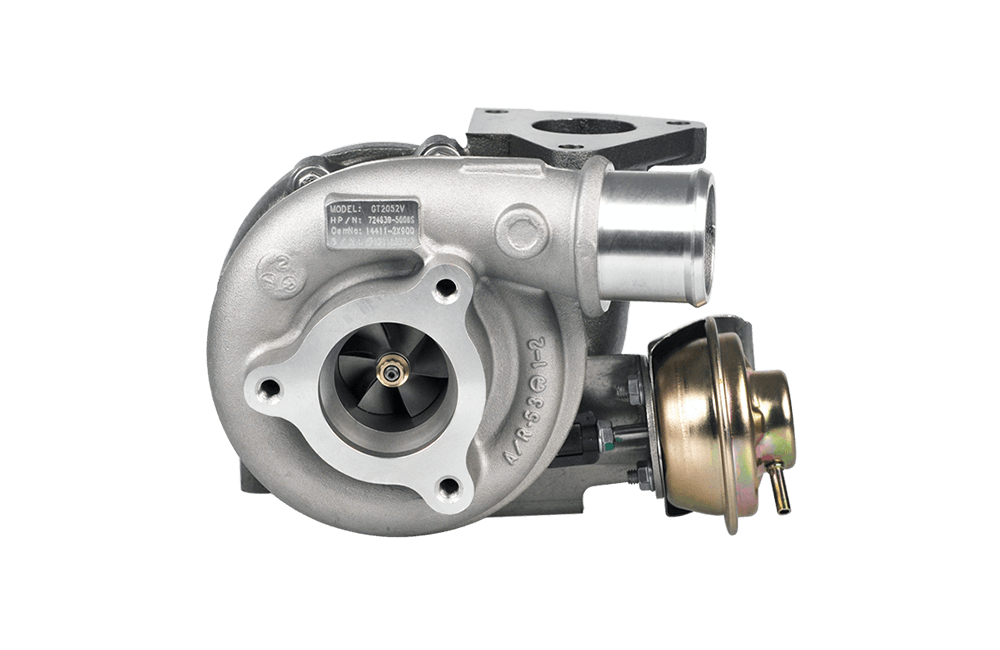

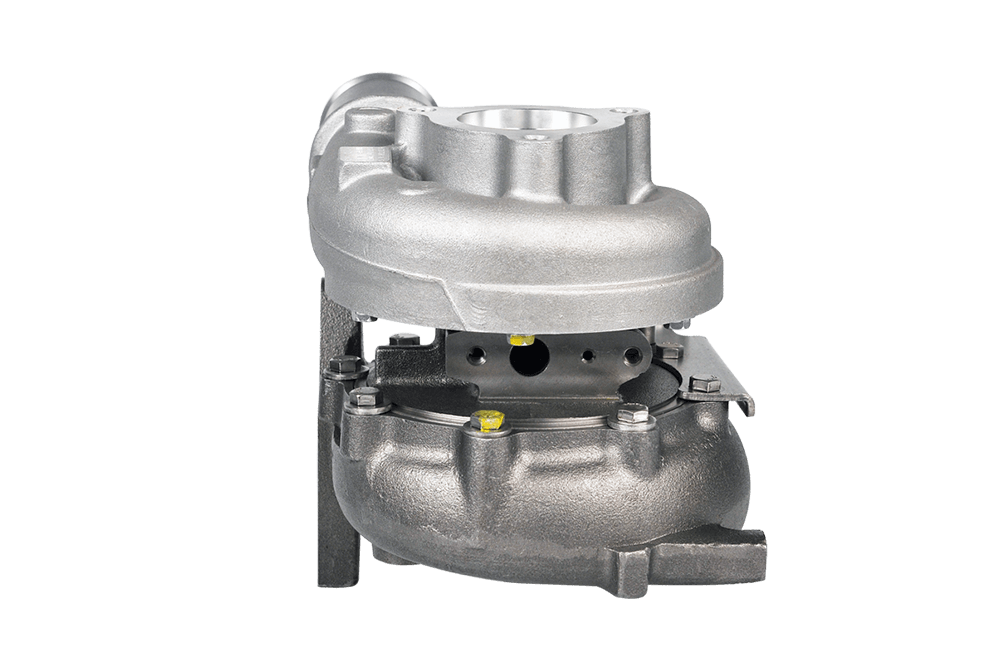

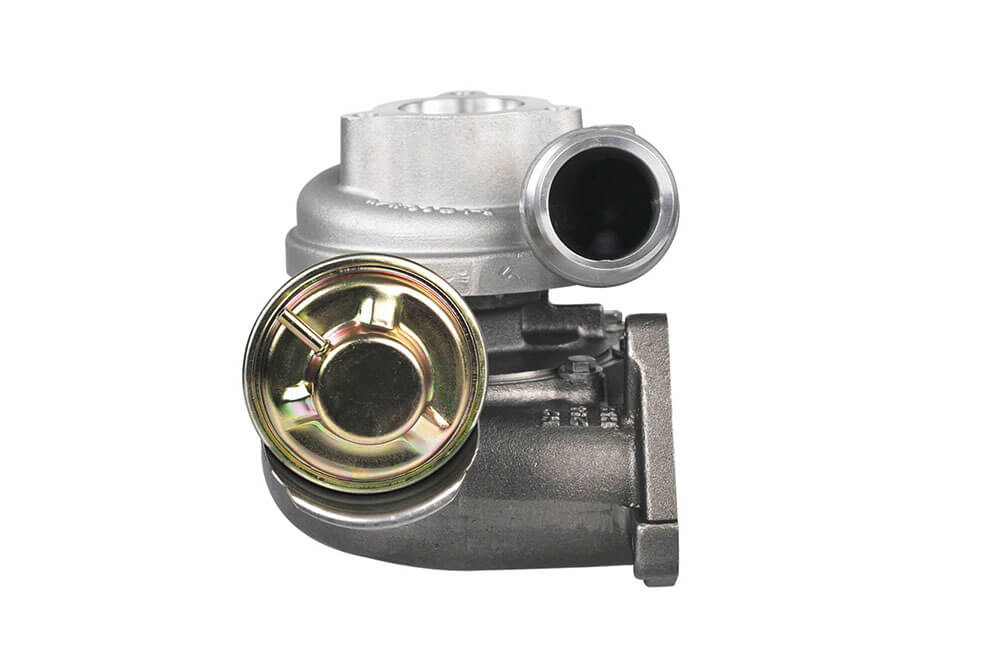

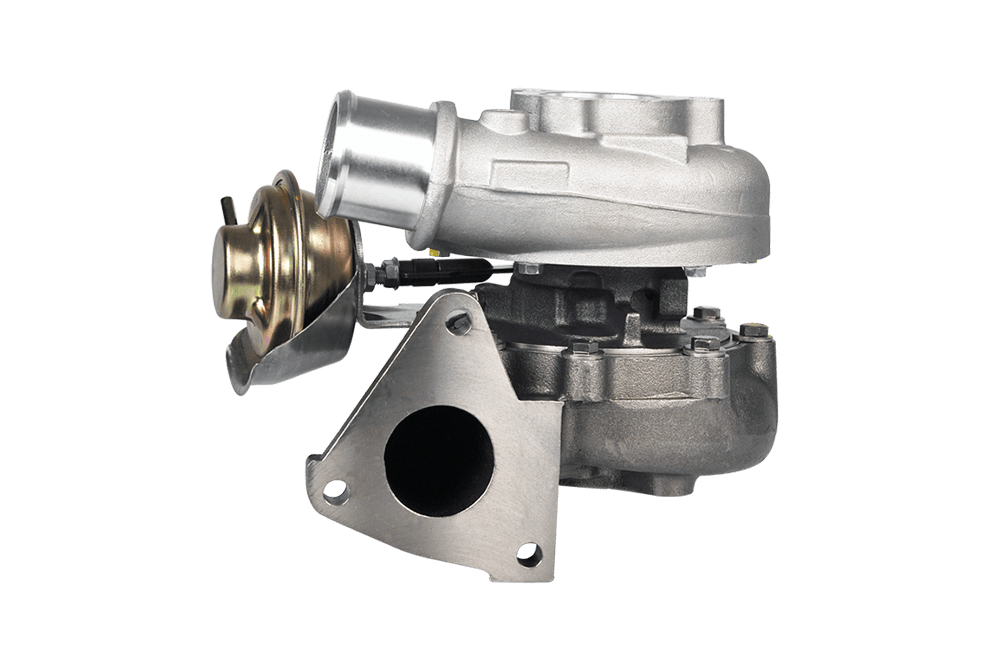

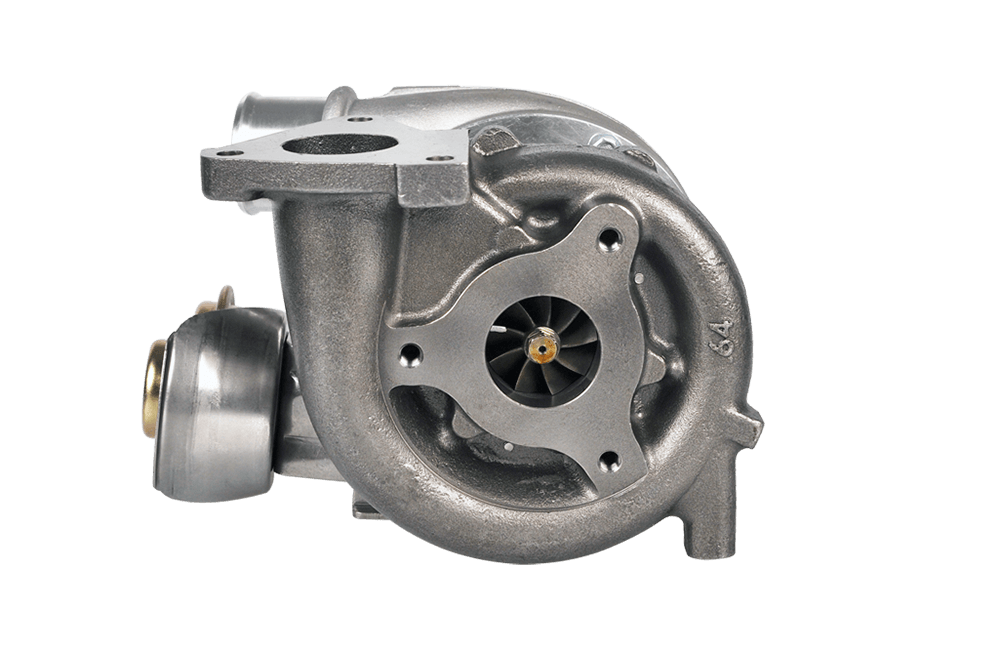

2000-09 Nissan Patrol Terrano II GT2052V Turbo 724639-0006 oil cooled
List
2000-09 Nissan Patrol Terrano II GT2052V Turbo 724639-0006 oil cooled
|
Part Number |
724639-5006S |
|
Previous Version |
705954-0008, 705954-0009, 705954-0011, 705954-0013, 705954-0015, 723739-0002, 723739-0003, 724639-0002, 724639-0004 |
|
OE Number |
144112X900, 14411-2X900, 144112X90A, 14411-2X90A, 1679410G01 |
|
Year |
Sep-00 |
|
Description |
Patrol, Terrano II |
|
CHRA |
702793-0024 (702793-5024S) |
|
Turbo Model |
GT2052V, GTA2052V |
|
Engine |
123ZD30ET, ZD30ETi |
|
Engine Manufacturer |
Nissan |
|
Displacement |
3.0L, 3000 ccm |
|
KW |
113/116/125 |
|
RPM Max |
3600 |
|
Fuel |
Diesel |
|
Angle α (compressor housing) |
175 dge |
|
Angle β (turbine housing) |
90 dge |
|
Bearing Housing |
Oil Cooled only |
|
Turbine Wheel |
434883-0003/434883-0030 |
|
Comp. Wheel |
702492-0004 |
|
Back plate |
703682-0050 |
|
Heat shield Number |
443768-0003 |
|
Repair Kit |
Extra |
|
Turbine Housing AR |
VNT1 |
|
Gasket (turbine inlet) |
210560 |
|
Gasket (turbine outlet) |
210561 |
|
Gasket (oil inlet and outlet) |
210642 |
|
Gasket (water inlet and outlet) |
210814 |
|
Gasket (turbine inlet) (compressor housing) |
210814 |
|
Replaced By |
726442-0004, 724639-0007 |
|
Manufacturer |
WUXI EbayTurbo |
|
Condition |
Brand new |
